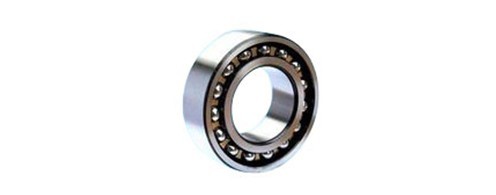

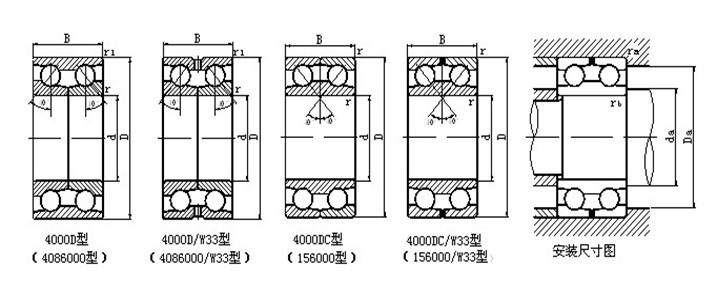

双列角接触球轴承
|
轴承型号
Bearing NO. |
外形尺寸（㎜）
Boundary Dimensions |
额定载荷（KN）
Basic Load Rating |
极限转速（rpm）
Limiting Speed |
质量
（㎏） Mass |
|||||||
|
现型号
Current |
原型号
Original |
d
|
D
|
B
|
rsmin
|
r1min
|
动
Dynamic |
静
Static |
脂
Grease |
油
Oil |
|
|
3220X1D/W33
|
4086920/W33
|
100
|
170
|
60.3
|
2.1
|
1.1
|
132
|
191
|
1800
|
2900
|
7.8
|
|
3221X2DC
|
156721
|
105
|
190
|
79
|
2.1
|
1.1
|
173
|
240
|
1800
|
2900
|
10.6
|
|
3222X3DC
|
156822
|
110
|
170
|
56
|
2
|
1
|
120
|
154
|
1800
|
2900
|
4.9
|
|
4222X3D
|
86722
|
110
|
200
|
83
|
2.1
|
1.1
|
178
|
260
|
1800
|
2900
|
12
|
|
4024X2D
|
86124
|
120
|
180
|
56
|
2
|
1
|
120
|
182
|
1800
|
2900
|
6
|
|
4024D
|
4086124
|
120
|
180
|
60
|
2
|
1
|
110
|
183
|
1800
|
2900
|
6.1
|
|
4024X3D
|
4086124K
|
120
|
190
|
66
|
2
|
1
|
145
|
220
|
1800
|
2900
|
7.5
|
|
4024X3DC
|
156724
|
120
|
190
|
66
|
2
|
1.1
|
145
|
220
|
1800
|
2900
|
7.5
|
|
4024X3DC-1
|
156724K
|
120
|
215
|
80
|
2.1
|
1.1
|
200
|
293
|
1800
|
2900
|
13.2
|
|
4026X2D
|
4086726
|
130
|
200
|
75
|
2
|
1
|
142
|
235
|
1700
|
2300
|
9.1
|
|
4028X3D
|
86728
|
140
|
209.5
|
66
|
2
|
1
|
146
|
249
|
1700
|
2300
|
8.4
|
|
4028X3D/W33
|
156728/W33
|
140
|
209.5
|
66
|
2
|
1
|
146
|
249
|
1700
|
2300
|
8.4
|
|
4028D
|
4086128
|
140
|
210
|
69
|
2
|
1
|
146
|
249
|
1700
|
2300
|
8.8
|
|
4028DC
|
4156128
|
140
|
210
|
69
|
2
|
1
|
146
|
249
|
1700
|
2300
|
8.8
|
|
4030X3DC
|
156730K
|
150
|
210
|
56
|
2
|
1
|
111
|
197
|
1600
|
2000
|
6.3
|
|
4030X2D
|
86730
|
150
|
225
|
73
|
2.1
|
1.1
|
160
|
280
|
1600
|
2000
|
9.4
|
|
4030X2D/W33
|
86730/W33
|
150
|
225
|
73
|
2.1
|
1.1
|
160
|
280
|
1600
|
2000
|
9.4
|
|
4030X2DT
|
150
|
225
|
73
|
2.1
|
1.1
|
160
|
280
|
1600
|
2000
|
9.4
|
|
|
4030D
|
4086130
|
150
|
225
|
75
|
2.1
|
1.1
|
160
|
280
|
1600
|
2000
|
9.6
|
|
4030X3D
|
86830
|
150
|
230
|
70
|
2.1
|
1.1
|
160
|
280
|
1600
|
2000
|
11.5
|
|
3230X2D/W33
|
150
|
270
|
90
|
3
|
1.1
|
225
|
405
|
1600
|
2000
|
23.3
|
|
|
4932X2DC
|
156932
|
160
|
215
|
56
|
2
|
1
|
97
|
166
|
1600
|
2000
|
8.6
|
|
4932X3DC
|
156132K
|
160
|
239.8
|
76
|
2.1
|
1.1
|
191
|
340
|
1450
|
1850
|
12
|
|
3032X2D
|
3086132K
|
160
|
240
|
58
|
2.1
|
1.1
|
155
|
268
|
1450
|
1850
|
9.7
|
|
4032X2DC
|
156132
|
160
|
240
|
76
|
2.1
|
1.1
|
190
|
340
|
1450
|
1850
|
13.5
|
|
4032D
|
4086132
|
160
|
240
|
80
|
2.1
|
1.1
|
190
|
340
|
1450
|
1850
|
12
|
|
4032X3DC
|
156832
|
160
|
249.5
|
84
|
2.1
|
1.1
|
210
|
385
|
1450
|
1850
|
15
|
|
4934X3DC
|
156734
|
170
|
230
|
56
|
2
|
1
|
105
|
162
|
1450
|
1850
|
7
|
|
4034X3D
|
4086734
|
170
|
259.5
|
84
|
2
|
1
|
208
|
385
|
1300
|
1700
|
15
|
|
4034X2DC
|
156134
|
170
|
260
|
84
|
2.1
|
1.1
|
215
|
400
|
1300
|
1700
|
15
|
|
4034X2DC/W33
|
156134/W33
|
170
|
260
|
84
|
2.1
|
1.1
|
215
|
400
|
1300
|
1700
|
15
|
|
4034D
|
4086134
|
170
|
260
|
90
|
2.1
|
1.1
|
208
|
385
|
1300
|
1700
|
15.5
|
|
4936X3DC/W33
|
156936/W33
|
180
|
250
|
70
|
2
|
1
|
166
|
320
|
1450
|
1850
|
9.2
|
|
4936X3D-1
|
86736K
|
180
|
259.5
|
60
|
2
|
1
|
134
|
269
|
1250
|
1600
|
11
|
|
4936X3D/W33
|
86736
|
180
|
259.5
|
66
|
2.1
|
1.1
|
180
|
340
|
1250
|
1600
|
11
|
|
4936X2DC
|
156736
|
180
|
259.5
|
66
|
2
|
1
|
180
|
340
|
1250
|
1600
|
11
|
|
4036X3DC
|
156836
|
180
|
259.5
|
80
|
2.1
|
1.1
|
180
|
340
|
1250
|
1600
|
14.5
|
|
4036X3DC-1
|
156136
|
180
|
280
|
92
|
2.1
|
1.1
|
237
|
450
|
1150
|
1500
|
19.7
|
|
4036X2D
|
236136
|
180
|
280
|
92
|
2.1
|
1.1
|
237
|
450
|
1150
|
1500
|
19.7
|
|
4036D
|
4086136
|
180
|
280
|
100
|
2.1
|
1.1
|
237
|
450
|
1150
|
1500
|
24
|
|
4938X3D
|
86738
|
190
|
269.5
|
66
|
2.1
|
1.1
|
183
|
290
|
1150
|
1500
|
12.5
|
|
4938X3D/W33
|
86738/W33
|
190
|
269.5
|
66
|
2.1
|
1.1
|
183
|
290
|
1150
|
1500
|
12.5
|
|
4038DC
|
156138
|
190
|
290
|
92
|
2.1
|
1.1
|
245
|
480
|
1100
|
1400
|
23
|
|
4038D
|
4086138
|
190
|
290
|
100
|
2.1
|
1.1
|
245
|
480
|
1100
|
1400
|
26.2
|
|
4940X3D
|
86740
|
200
|
279.5
|
76
|
2.1
|
1.1
|
206
|
400
|
1100
|
1400
|
15
|
|
4940X3D/W33
|
86740/W33
|
200
|
279.5
|
76
|
2.1
|
1.1
|
206
|
400
|
1100
|
1400
|
15
|
|
4940X3DC
|
156740
|
200
|
280
|
76
|
2.1
|
1.1
|
206
|
400
|
1100
|
1400
|
15.2
|
|
4040X3DC-1
|
156940
|
200
|
280
|
80
|
2.1
|
1.1
|
206
|
400
|
1100
|
1400
|
16
|
|
4940X3D-1
|
86840
|
200
|
289.5
|
76
|
2.1
|
1.1
|
226
|
419
|
1100
|
1400
|
15.5
|
|
4940X3D-1/W33
|
86840/W33
|
200
|
289.5
|
76
|
2.1
|
1.1
|
226
|
419
|
1100
|
1400
|
15.5
|
|
4040X3D
|
4086140K
|
200
|
309.5
|
102
|
2.1
|
1.1
|
286
|
458
|
1000
|
1300
|
33
|
|
4040X3DC
|
156140
|
200
|
310
|
96
|
3
|
1.1
|
286
|
458
|
1000
|
1300
|
29.5
|
|
4040D
|
4086140
|
200
|
310
|
109
|
3
|
1.1
|
286
|
458
|
1000
|
1300
|
33.1
|
|
4944X3D
|
86744
|
220
|
309.5
|
76
|
3
|
1.1
|
225
|
455
|
900
|
1200
|
18.8
|
|
4944X3D/W33
|
86744/W33
|
220
|
309.5
|
76
|
3
|
1.1
|
225
|
455
|
900
|
1200
|
18.8
|
|
2044X3D
|
86744/W33
|
220
|
329.5
|
76
|
3
|
1.5
|
226
|
470
|
850
|
1100
|
21.4
|
|
4040X2DC
|
4156144K
|
220
|
340
|
112
|
3
|
1.5
|
309
|
502
|
850
|
1100
|
33.5
|
|
4044D
|
4086144
|
220
|
340
|
118
|
3
|
1.1
|
310
|
670
|
850
|
1100
|
35
|
|
4946X1D
|
86746
|
230
|
329.5
|
80
|
3
|
1.1
|
242
|
500
|
850
|
1100
|
23.5
|
|
4946X1D/W33
|
86746/W33
|
230
|
329.5
|
80
|
3
|
1.1
|
242
|
500
|
850
|
1100
|
23.5
|
|
4946X3D
|
156746
|
230
|
329.5
|
80
|
3
|
1.1
|
242
|
500
|
850
|
1100
|
23.5
|
|
4946X3D/W33
|
156746/W33
|
230
|
329.5
|
80
|
3
|
1.1
|
242
|
500
|
850
|
1100
|
23.5
|
|
4048X2D
|
4086148K
|
240
|
359.5
|
118
|
3
|
1.1
|
315
|
700
|
850
|
1100
|
44
|
|
4048D
|
4086148
|
240
|
360
|
118
|
3
|
1.1
|
315
|
700
|
850
|
1100
|
44
|
|
4048X3D
|
86748K
|
240
|
370
|
112
|
3
|
1.1
|
315
|
700
|
850
|
1100
|
46
|
|
4952X2D/W33
|
260
|
360
|
92
|
4
|
2
|
264
|
587
|
850
|
1100
|
29.3
|
|
|
4952X3D
|
86752
|
260
|
369.5
|
92
|
4
|
2
|
270
|
600
|
850
|
1100
|
30.5
|
|
4952X3D/W33
|
86752/W33
|
260
|
369.5
|
92
|
4
|
2.1
|
270
|
600
|
850
|
1100
|
30.5
|
|
4952X3DC
|
156152
|
260
|
400
|
130
|
4
|
2
|
436
|
735
|
800
|
1050
|
56
|
|
4052D
|
4086152
|
260
|
400
|
140
|
4
|
2
|
436
|
735
|
800
|
1050
|
58
|
|
4956X3D-1
|
86756K
|
280
|
389.5
|
92
|
4
|
2
|
305
|
715
|
850
|
1100
|
35
|
|
4956X3D-1/W33
|
86756K/W33
|
280
|
389.5
|
92
|
4
|
2
|
305
|
715
|
850
|
1100
|
35
|
|
4956X3C/W33
|
156756/W33
|
280
|
389.5
|
92
|
4
|
2
|
305
|
715
|
850
|
1100
|
35
|
|
4956X3D
|
86756
|
280
|
390
|
92
|
4
|
2
|
305
|
715
|
850
|
1100
|
35
|
|
4956X3D/W33
|
280
|
390
|
92
|
4
|
2
|
305
|
715
|
850
|
1100
|
35
|
|
|
4056X3DC
|
4156156K
|
280
|
420
|
130
|
4
|
2.1
|
383
|
706
|
800
|
1050
|
60.1
|
|
4056D
|
4086156
|
280
|
420
|
140
|
4
|
2.1
|
410
|
950
|
800
|
1050
|
64.2
|
|
4960X3D
|
86760
|
300
|
419.5
|
112
|
3
|
1.1
|
360
|
678
|
750
|
1000
|
50.5
|
|
4960X3DC/W33
|
156860/W33
|
300
|
459.5
|
100
|
4
|
2
|
425
|
820
|
750
|
1000
|
66.5
|
|
4060X2D/W33
|
156760/W33
|
300
|
459.5
|
112
|
4
|
2
|
425
|
820
|
750
|
1000
|
68
|
|
4060X2D/W33
|
300
|
460
|
148
|
4
|
2
|
425
|
820
|
750
|
1000
|
84.4
|
|
|
4060X2DC/W33
|
4156156K
|
300
|
460
|
148
|
4
|
2.1
|
425
|
820
|
750
|
1000
|
84.4
|
|
4060D
|
4086160
|
300
|
460
|
160
|
4
|
2
|
425
|
820
|
750
|
1000
|
87.8
|
|
4064X3D
|
86764
|
320
|
459.5
|
140
|
4
|
2
|
400
|
1020
|
750
|
1000
|
80
|
|
4064X3D/W33
|
86764/W33
|
320
|
459.5
|
140
|
4
|
2
|
400
|
1020
|
750
|
1000
|
80
|
|
4064D
|
4086164
|
320
|
480
|
160
|
4
|
1.5
|
505
|
1360
|
700
|
950
|
98
|
|
4968X2D/W33
|
340
|
460
|
112
|
3
|
1.1
|
448
|
1060
|
700
|
950
|
54
|
|
|
4068D
|
4086168
|
340
|
520
|
180
|
5
|
2
|
600
|
1720
|
700
|
950
|
130.5
|
|
4068D/W33
|
340
|
520
|
180
|
5
|
2
|
600
|
1720
|
700
|
950
|
130.5
|
|
|
4972X2D/W33
|
360
|
480
|
112
|
3
|
1.1
|
488
|
1100
|
670
|
900
|
57
|
|
|
4072X2D/W33
|
360
|
540
|
164
|
5
|
2
|
741
|
1700
|
630
|
850
|
125
|
|
|
4976X2D/W33
|
86776/W33
|
380
|
520
|
130
|
4
|
1.5
|
420
|
1170
|
670
|
900
|
83
|
|
4076X2D/W33
|
380
|
560
|
164
|
5
|
2
|
468
|
1520
|
600
|
800
|
133
|
|
|
4980X2D/W33
|
400
|
540
|
130
|
4
|
1.5
|
530
|
1210
|
600
|
800
|
84
|
|
|
4080X2D/W33
|
400
|
600
|
180
|
5
|
2
|
952
|
2000
|
560
|
750
|
170
|
|
|
4984X2D/W33
|
420
|
560
|
130
|
4
|
1.5
|
590
|
1300
|
560
|
750
|
89
|
|
|
4084X2D/W33
|
420
|
620
|
180
|
5
|
2
|
870
|
2100
|
530
|
700
|
177
|
|
|
4088X2D/W33
|
440
|
650
|
188
|
6
|
3
|
720
|
2340
|
500
|
670
|
200
|
|
|
4992X2D/W33
|
460
|
620
|
148
|
4
|
1.5
|
810
|
2000
|
950
|
1400
|
116
|
|
|
4092X2D/W33
|
460
|
680
|
200
|
6
|
3
|
1100
|
2800
|
480
|
630
|
240
|
|
|
4096X2D/W33
|
480
|
700
|
200
|
6
|
3
|
1000
|
2600
|
480
|
630
|
240
|
|
|
49/500X2D/W33
|
500
|
670
|
156
|
5
|
2
|
860
|
2400
|
500
|
670
|
156
|
|
|
40/500X2D/W33
|
500
|
720
|
200
|
6
|
3
|
1020
|
2700
|
450
|
600
|
260
|
|
|
49/530X2DC/W33
|
1567/530/W33
|
530
|
760
|
200
|
6
|
3
|
815
|
2890
|
480
|
630
|
275
|
|
40/530X2DC/W33
|
1561/530/W33
|
530
|
780
|
224
|
6
|
3
|
930
|
3380
|
450
|
600
|
335
|
|
49/560D/W33
|
560
|
750
|
190
|
5
|
2
|
950
|
2500
|
450
|
600
|
230
|
|
|
40/560X2D/W33
|
560
|
820
|
230
|
6
|
3
|
900
|
2100
|
430
|
560
|
390
|
|
|
28/650X2D/W33
|
867/650
|
650
|
780
|
84
|
4
|
1.5
|
540
|
1760
|
400
|
500
|
81
|
|
38/900X3D/W33
|
867/900
|
900
|
1030
|
135
|
5
|
2
|
670
|
2550
|
250
|
350
|
150
|
|
19/1000X1D/W33
|
867/1000
|
1000
|
1170
|
140
|
5
|
3
|
830
|
3200
|
200
|
300
|
255
|
|
…
|
…
|
…
|
…
|
…
|
…
|
…
|
…
|
…
|
…
|
…
|
…
|
