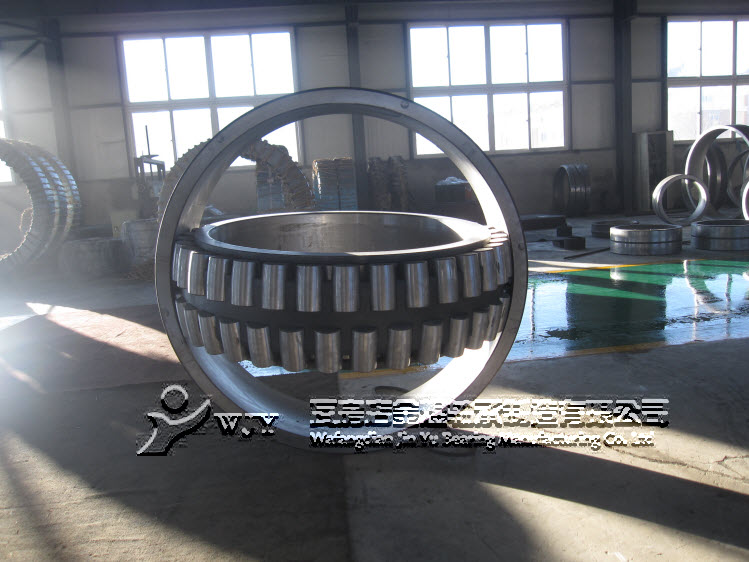

539/1100K1/W33 调心滚子轴承（非标）
| 内径： | 1100（mm） | 厚度： | 400（mm） |
| 加工定制： | 是 | 类型： | 调心滚子轴承 |
| 重量： | 2130（kg） | 滚动体列数： | 双列 |
| 滚道类型： | 球面滚道 | 保持架及其材料： | F3球墨铸铁 |
| 型号： | 539/1100K1 | 轴承材质： | GCr15SiMn |
| 品牌： | WJY | 外径： | 1500（mm） |
|
d 1295mm cylindrical and tapered bore
D 1665mm Spherical roller bearings
B 300mm Principal dimensions
Bearing 539/1295K/W33 Designations
Mass 1920KG
|
其它及非标系列
| 轴承型号 | 基本尺寸 | 基本额定载荷 (kN) | 重量(kg) | |
| dxDxB | 动(Cr) | 静(Cor) | ||
| 23324CA/W33 | 120x260x106 | 1020 | 1430 | 29.1 |
| 23328CA/W33 | 140x300x118 | 1300 | 2050 | 42.2 |
| 23328MB/W33 | 140x300x118 | 1300 | 2050 | 42.2 |
| 23334CA/W33 | 170x360x136 | 1420 | 2250 | 68.7 |
| 23334MB/W33 | 170x360x136 | 1420 | 2250 | 68.7 |
| 23340CA/W33 | 200x420x165 | 2020 | 3500 | 125 |
| 23340MB/W33 | 200x420x165 | 2020 | 3500 | 125 |
| 238/1000 | 1000x1220x165 | 4660 | 14300 | 410 |
| 238/1800 | 1800x2180x290 | 2230 | ||
| 23934CA/W33 | 170*230*45 | 5.45 | ||
| 23936CA/W33 | 180x250x52 | 430 | 830 | 7.34 |
| 23936CC/W33 | 180x250x53 | 430 | 830 | 7.34 |
| 23938CA/W33 | 190x260x52 | 550 | 980 | 8.32 |
| 23938CC/W33 | 190x260x52 | 550 | 980 | 8.01 |
| 23940CA/W33 | 200x280x60 | 495 | 1150 | 12.5 |
| 23940CC/W33 | 200x280x60 | 495 | 1150 | 12.1 |
| 23940MB/W33 | 200x280x60 | 495 | 1150 | 12.5 |
| 23944CA/W33 | 220x300x60 | 500 | 980 | 13.2 |
| 23944CC/W33 | 220x300x60 | 500 | 980 | 13 |
| 23944MB/W33 | 220x300x60 | 500 | 980 | 13.2 |
| 23948CA/W33 | 240x320x60 | 530 | 1310 | 15 |
| 23948CC/W33 | 240x320x60 | 530 | 1310 | 14.7 |
| 23948MB/W33 | 240x320x60 | 530 | 1310 | 15 |
| 23952CA/W33 | 260x360x75 | 820 | 1750 | 21.6 |
| 23952CC/W33 | 260x360x75 | 820 | 1750 | 21.6 |
| 23952MB/W33 | 260x360x75 | 820 | 1750 | 21.6 |
| 23956CA/W33 | 280x380x75 | 700 | 1850 | 25.8 |
| 23956CC/W33 | 280x380x75 | 700 | 1850 | 25.2 |
| 23956MB/W33 | 280x380x75 | 700 | 1850 | 25.8 |
| 23960CA/W33 | 300x420x90 | 1050 | 2500 | 40.1 |
| 23960CC/W33 | 300x420x90 | 1050 | 2500 | 39.7 |
| 23960MB/W33 | 300x420x90 | 1050 | 2500 | 40.1 |
| 23964CA/W33 | 320x440x90 | 1140 | 2660 | 43 |
| 23964CC/W33 | 320x440x90 | 1140 | 2660 | 42.5 |
| 23964MB/W33 | 320x440x90 | 1140 | 2660 | 43 |
| 23968CA/W33 | 340x460x90 | 1200 | 2700 | 45.6 |
| 23968CC/W33 | 340x460x90 | 1200 | 2700 | 45.1 |
| 23968MB/W33 | 340x460x90 | 1200 | 2700 | 45.6 |
| 23972CA/W33 | 360x480x90 | 1290 | 2820 | 46.6 |
| 23972CC/W33 | 360x480x90 | 1290 | 2820 | 46.1 |
| 23972MB/W33 | 360x480x90 | 1290 | 2820 | 46.6 |
| 23976CA/W33 | 380x520x106 | 1730 | 3800 | 69.5 |
| 23976CC/W33 | 380x520x106 | 1730 | 3800 | 69.1 |
| 23976MB/W33 | 380x520x106 | 1730 | 3800 | 69.5 |
| 23980CA/W33 | 400x540x106 | 2200 | 3900 | 72.4 |
| 23980CC/W33 | 400x540x106 | 2200 | 3900 | 72 |
| 23980MB/W33 | 400x540x106 | 2200 | 3900 | 72.4 |
| 23984CA/W33 | 420x560x106 | 2300 | 4250 | 71.6 |
| 23984MB/W33 | 420x560x106 | 2300 | 4250 | 71.6 |
| 23988CA/W33 | 440x600x118 | 2450 | 4800 | 96.3 |
| 23988MB/W33 | 440x600x118 | 2450 | 4800 | 96.3 |
| 23992CA/W33 | 460x620x118 | 2550 | 4950 | 100 |
| 23992MB/W33 | 460x620x118 | 2550 | 4950 | 100 |
| 23996CA/W33 | 480x650x128 | 2150 | 5750 | 125 |
| 23996MB/W33 | 480x650x128 | 2150 | 5750 | 125 |
| 239/500CA/W33 | 500x670x128 | 2530 | 6000 | 130 |
| 239/500MB/W33 | 500x670x128 | 2530 | 6000 | 130 |
| 239/530CA/W33 | 530x710x136 | 2930 | 6800 | 149 |
| 239/530MB/W33 | 530x710x136 | 2930 | 6800 | 149 |
| 239/560CA/W33 | 560x750x140 | 3050 | 7200 | 177 |
| 239/560MB/W33 | 560x750x140 | 3050 | 7200 | 177 |
| 239/600CA/W33 | 600x800x150 | 3450 | 8100 | 205 |
| 239/600MB/W33 | 600x800x150 | 3450 | 8100 | 205 |
| 239/630CA/W33 | 630x850x165 | 4000 | 9350 | 259 |
| 239/630MB/W33 | 630x850x165 | 4000 | 9350 | 259 |
| 239/670CA/W33 | 670x900x170 | 4350 | 10300 | 314 |
| 239/670CC/W33 | 670x900x170 | 4350 | 10300 | 311 |
| 239/670MB/W33 | 670x900x170 | 4350 | 10300 | 314 |
| 239/700 | 700x950x180 | 378 | ||
| 239/710CA/W33 | 710x950x180 | 4800 | 11700 | 352 |
| 239/710MB/W33 | 710x950x180 | 4800 | 11700 | 352 |
| 239/750CA/W33 | 750x1000x185 | 5250 | 12800 | 412 |
| 239/750MB/W33 | 750x1000x185 | 5250 | 12800 | 398 |
| 239/800 | 800x1060x195 | 480 | ||
| 239/850CA/W33 | 850x1120x200 | 6100 | 15200 | 523 |
| 239/950CA/W33 | 950x1250x224 | 7600 | 19900 | 732 |
| 239/1000 | 1000x1320x236 | 890 | ||
| 239/1060CA/W33 | 1060x1400x250 | 9300 | 24400 | 1030 |
| 239/1180CA/W33 | 1180x1540x272 | 9350 | 29600 | 1350 |
| 248/800 | 800x980x180 | 4140 | 12900 | 295 |
| 248/1000F3 | 1000x1220x218 | 541 | ||
| 248/1500BK30MB | 1500x1820x315 | 1710 | ||
| 248/1800 | 1800x2180x375 | 2884 | ||
| 249/670 | 670*900*230 | 423 | ||
| 249/710CA/W33 | 710*950*243 | 485 | ||
| 249/800CA/W33 | 800x1060x258 | 635 | ||
| 249/950 | 950*1250*300 | 1007 | ||
| 249/1000 | 1000*1320*315 | 1189 | ||
| 249/1060 | 1060*1400*335 | 1425 | ||
| 249/1120CA/W33 | 1120*1460*335 | 1494 | ||
| 249/1180 | 1180*1540*355 | 1772 | ||
| 249/1320 | 1320*1720*400 | 2473 | ||
| 249/1400CA/W33 | 1400*1820*425 | 2923 | ||
| 249/1500 | 1500x1950x450 | 3552 | ||
| 29256 | 280x380x60 | 870 | 4000 | 19.1 |
| 29260 | 300x420x73 | 1050 | 5050 | 30 |
| 29264 | 320x440x73 | 1150 | 5600 | 32.5 |
| 29272 | 360x500x85 | 52 | ||
| 29280 | 400x540x85 | 1520 | 7750 | 55.1 |
| 29296 | 480x650x103 | 101 | ||
| 292/500/YA3 | 500x670x103 | 2500 | 11500 | 100 |
| 292/530 | 530x710x109 | 2720 | 14000 | 122 |
| 292/560 | 560x750x115 | 3100 | 16600 | 131 |
| 292/630YA3 | 630x850x132 | 3880 | 20250 | 231 |
| 292/710/YA3 | 710x950x145 | 4060 | 22500 | 279 |
| 29244/YA3 | 220x300x48 | 484 | 910 | 7.92 |
| 29252M/YA3 | 260x360x60 | 798 | 1550 | 15.7 |
| 29268/YA3 | 340x460x73 | 1250 | 5800 | 31.4 |
| 29284/YA3 | 420x580x95 | 2060 | 10000 | 78.9 |
| 29352 | 260x420x95 | 1700 | 6500 | 48.5 |
| 29356 | 280x440x95 | 1800 | 7000 | 49.1 |
| 29360 | 300x480x109 | 2050 | 8000 | 74.2 |
| 29380 | 400x620x132 | 3200 | 12500 | 150 |
| 293/710 | 710x1060x212 | 668 | ||
| 29326/YA3 | 130x225x58 | 610 | 2050 | 8.26 |
| 29328/YA3 | 140x240x60 | 675 | 2150 | 10.4 |
| 29330/YA3 | 150x250x60 | 750 | 2350 | 10.8 |
| 29332/YA3 | 160x270x67 | 850 | 2800 | 14.3 |
| 29334/YA3 | 170x280x67 | 880 | 2950 | 14.8 |
| 29336/YA3 | 180x300x73 | 1000 | 3400 | 19.4 |
| 29338/YA3 | 190x320x78 | 1150 | 3850 | 23.1 |
| 29340/YA3 | 200x340x85 | 1280 | 4500 | 28.5 |
| 29348/YA3 | 240x380x85 | 1350 | 5200 | 35.5 |
| 29372/YA3 | 360x560x122 | 2550 | 10000 | 107 |
| 29424 | 120x250x78 | 960 | 3000 | 19.4 |
| 29436 | 180×360×109 | 54 | ||
| 29452 | 260x480x132 | 2650 | 9850 | 105 |
| 29460 | 300X540X145 | 3360 | 12000 | 142 |
| 29464 | 320x580x155 | 3500 | 13500 | 115 |
| 29468 | 340x620x170 | 4000 | 15500 | 218 |
| 29472 | 360x640x170 | 4300 | 16800 | 228 |
| 29480 | 400x710x185 | 5350 | 20150 | 306 |
| 294/500 | 500x870x224 | 6930 | 27700 | 462 |
| 294/600 | 600x1030x258 | 9500 | 40500 | 896 |
| 294/630EMB | 630x1090x280 | 1126 | ||
| 294/670 | 670x1150x290 | 11000 | 54500 | 1214 |
| 294/670EM | 670×1150×290 | 1288 | ||
| 294/710F3 | 710 1220 308 | 1542 | ||
| 294/750YA3 | 750x1280x315 | 14850 | 63500 | 1723 |
| 294/800 | 800×1360×335 | 2060 | ||
| 29420/YA3 | 100x210x67 | 680 | 2000 | 10.5 |
| 29422/YA3 | 110x230x73 | 840 | 2500 | 13.3 |
| 29424/YA3 | 120x250x78 | 960 | 3000 | 19.5 |
| 29424J | 120x250x78 | 960 | 3000 | 19.5 |
| 29426/YA3 | 130x270x85 | 1050 | 3500 | 23 |
| 29428/YA3 | 140x280x85 | 1250 | 3850 | 22.7 |
| 29428J | 140x280x85 | 1250 | 3850 | 22.7 |
| 29430/YA3 | 150x300x90 | 1280 | 4250 | 27.3 |
| 29432/YA3 | 160x320x95 | 1500 | 5000 | 33.3 |
| 29434/YA3 | 170x340x103 | 1650 | 5500 | 40.7 |
| 29436/YA3 | 180x360x109 | 1800 | 6000 | 42.3 |
| 29436J | 180x360x109 | 1800 | 6000 | 42.3 |
| 29438/YA3 | 190x380x115 | 2000 | 6500 | 60.1 |
| 29440/YA3 | 200x400x122 | 2200 | 7500 | 69.2 |
| 29448/YA3 | 240x440x122 | 2400 | 8150 | 74.5 |
| 29488EM/YA3 | 440x780x206 | 6200 | 24800 | 407 |
| 537/530K | 530*780*195 | 315.00 | ||
| 537/540K | 540*745*140 | 184.00 | ||
| 537/545 | 545*730*170 | 202.50 | ||
| 537/545K1 | 545*735*100 | |||
| 537/545K2 | 545*745*160 | 210.00 | ||
| 537/550HK | 550*820*230 | 444.00 | ||
| 537/560K | 560*800*185 | 291.00 | ||
| 537/590K | 590*800*180 | 265.00 | ||
| 537/600K | 600*840*180 | 315.00 | ||
| 537/630K | 630*920*180 | 385.00 | ||
| 537/690K | 690*1000*200 | 515.00 | ||
| 537/695K | 695*910*180 | 291.00 | ||
| 537/695K1 | 695*905*140 | 232.00 | ||
| 537/695K2 | 695*910*140 | 243.00 | ||
| 537/695K3 | 695*905*160 | 268.00 | ||
| 537/695K4 | 695*905*190 | 306.00 | ||
| 537/700K | 700*1000*200 | 510.00 | ||
| 537/750K | 750*1000*200 | 474.00 | ||
| 537/800K | 800*1050*210 | |||
| 537/895K | 895*1350*272 | 1385.00 | ||
| 537/895K1 | 895*1265*250 | 1020.00 | ||
| 537/900K1 | 900*1200*230 | 689.00 | ||
| BY537/995K | 995*1320*240 | |||
| 537/955K | 955*1270*270 | 964.00 | ||
| 537/1195K | 1195*1580*260 | |||
| 537/1200K | 1200*1600*290 | |||
| 537/1500K | 1500*1930*330 | 2440.00 | ||
| YPF537/2060K | 2060*2430*310 | |||
| YPF1537/2070K | 2070*2430*310 | 2600.00 | ||
| 538/545K | 545*720*148 | 166.00 | ||
| 538/545K1 | 545*720*160 | 175.00 | ||
| 538/550K | 550*750*160 | 210.00 | ||
| 538/555K | 555*745*130 | 157.00 | ||
| 538/555K1 | 555*745*140 | 170.00 | ||
| 538/695K | 695*860*145 | 186.00 | ||
| 538/695K1 | 695*880*160 | 228.00 | ||
| 538/695K2 | 695*900*230 | 370.00 | ||
| 538/695K3 | 695*900*140 | 212.00 | ||
| 538/700K | 700*950*210 | |||
| 538/700K1 | 700*950*230 | 470.00 | ||
| 538/700K2 | 700*950*180 | 374.00 | ||
| 538/800K | 800*1100*250 | 723.00 | ||
| 538/800K1 | 800*1100*280 | 822.00 | ||
| 538/800K2 | 800*1090*230 | 640.00 | ||
| 538/800K3 | 800*1100*300 | |||
| 538/895K | 895*1135*180 | 524.00 | ||
| 538/895K1 | 895*1135*200 | 499.00 | ||
| 538/895K2 | 895*1135*250 | 624.00 | ||
| 538/900K | 900*1100*160 | 319.00 | ||
| 538/995K | 995*1240*240 | 645.00 | ||
| 538/1000K | 1000*1500*400 | 2445.00 | ||
| 538/1000K1 | 1000*1500*360 | 2205.00 | ||
| 538/1000K2 | 1000*1400*270 | 236.00 | ||
| 538/1000K3 | 1000*1400*300 | 1470.00 | ||
| 538/1195K | 1195*1565*350 | 1980.00 | ||
| 538/1200K | 1200*1300*280 | 1140.00 | ||
| 538/1215K | 1215*1450*200 | 611.00 | ||
| 538/1295K | 1295*1665*300 | |||
| 538/1400K | 1400*1760*350 | 2020.00 | ||
| 538/1500K | 1500*1850*280 | |||
| 539/545K | 545*725*160 | |||
| 539/545K1 | 545*725*180 | 208.00 | ||
| 539/545K2 | 545*725*120 | 138.00 | ||
| 539/560K | 560*820*160 | |||
| 539/580K | 580*760*130 | |||
| 539/550K | 550*770*160 | 229.00 | ||
| 539/690K | 690*920*180 | 309.00 | ||
| 539/690K1 | 690*920*240 | |||
| 539/695K4 | 695*935*150 | 291.00 | ||
| 539/695K5 | 695*935*200 | 396.00 | ||
| 539/695K6 | 695*950*210 | 446.00 | ||
| 539/695K7 | 695*950*160 | 317.00 | ||
| 539/698K | 698*950*243 | 501.00 | ||
| 539/700K | 700*960*180 | 383.00 | ||
| 539/700K1 | 700*910*160 | |||
| 539/730K | 730*980*180 | 378.00 | ||
| 539/800K | 800*1060*210 | 474.00 | ||
| 539/800K1 | 800*1060*200 | 453.00 | ||
| 539/800K2 | 800*1060*180 | 406.00 | ||
| 539/800K3 | 800*1060*250 | 618.00 | ||
| 539/800K4 | 800*1060*240 | 593.00 | ||
| 539/800K5 | 800*1060*270 | 663.00 | ||
| 539/800K6 | 800*1060*300 | |||
| 539/880K | 880*1100*160 | 326.00 | ||
| 539/890K | 800*1200*200 | 637.00 | ||
| 539/890K1 | 890*1200*230 | 735.00 | ||
| 539/890K2 | 890*1200*250 | |||
| 539/895K | 895*1140*210 | 492.00 | ||
| 539/895K1 | 895*1135*260 | 585.00 | ||
| 539/895K2 | 895*1180*160 | 481.00 | ||
| 539/895K3 | 895*1190*270 | 842.00 | ||
| 539/900K | 900*1180*260 | 774.00 | ||
| 539/995K | 995*1270*270 | 835.00 | ||
| 539/995K1 | 995*1270*300 | 949.00 | ||
| 539/1000K | 1000*1300*250 | 870.00 | ||
| 539/1000K1 | 1000*1300*300 | 955.00 | ||
| 539/1000K2 | 1000*1350*330 | 1370.00 | ||
| 539/1000K3 | 1000*1280*200 | 646.00 | ||
| 539/1000K4 | 1000*1300*270 | 948.00 | ||
| 539/1000K5 | 1000*1300*240 | |||
| 539/1020K | 1020*1320*240 | 840.00 | ||
| 539/1060K | 1060*1400*260 | |||
| 539/1061K | 1061*1400*259 | |||
| 539/1100K | 1100*1500*350 | |||
| 539/1100K1 | 1100*1500*400 | 2130.00 | ||
| 539/1180K | 1180*1600*355 | |||
| 539/1195K | 1195*1500*300 | 1205.00 | ||
| 539/1195K1 | 1195*1450*200 | |||
| 539/1200K | 1200*1580*300 | 1600.00 | ||
| 539/1250K | 1250*1800*290 | 2320.00 | ||
| 539/1330K | 1330*1600*280 | 1120.00 | ||
| 1539/1270K | 1270*1600*260 | |||
| 539/1295K | 1295*1665*350 | 1920.00 | ||
| 539/1300K | 1300*1665*280 | |||
| 539/1400K | 1400*1800*340 | 2050.00 | ||
| 539/1500K | 1500*1900*300 | |||
| 539/1800K | 1800*2200*360 | |||
| 539/1800K1 | 1800*2200*400 | |||
| ... | ... | ... | ... | ... |
推荐产品
- 瓦房店 232/750CAKF3/W33 球面 调心滚子轴承 内径： 750（mm） 厚度： 475（mm） 旧型号： 30532/750 类型： 调心滚子轴承 重量： 3200（kg） 滚动体列数： 双列 滚道类型： 球面滚道 保持架及其材料...
- 瓦房店 232/750CAK/C3W33 调心滚子轴承 内径： 750（mm） 厚度： 475（mm） 旧型号： 30532/750 类型： 调心滚子轴承 重量： 3200（kg） 滚动体列数： 双列 滚道类型： 球面滚道 保持架及其材料...
